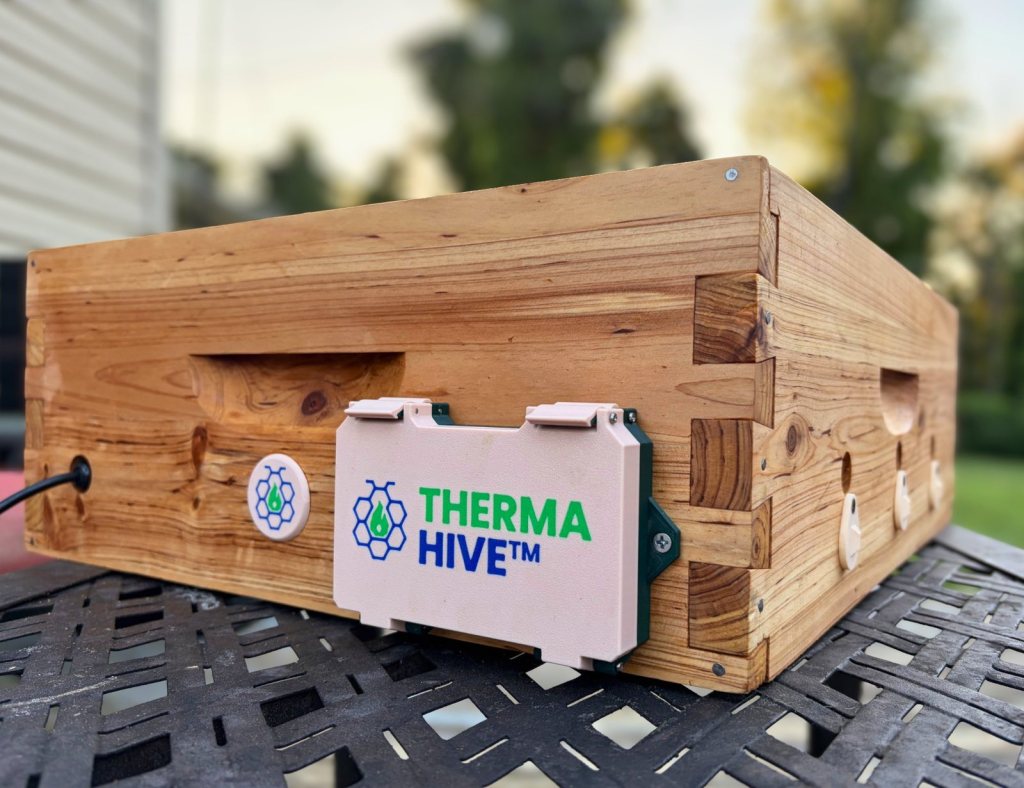

TopBox & HeaterInsert

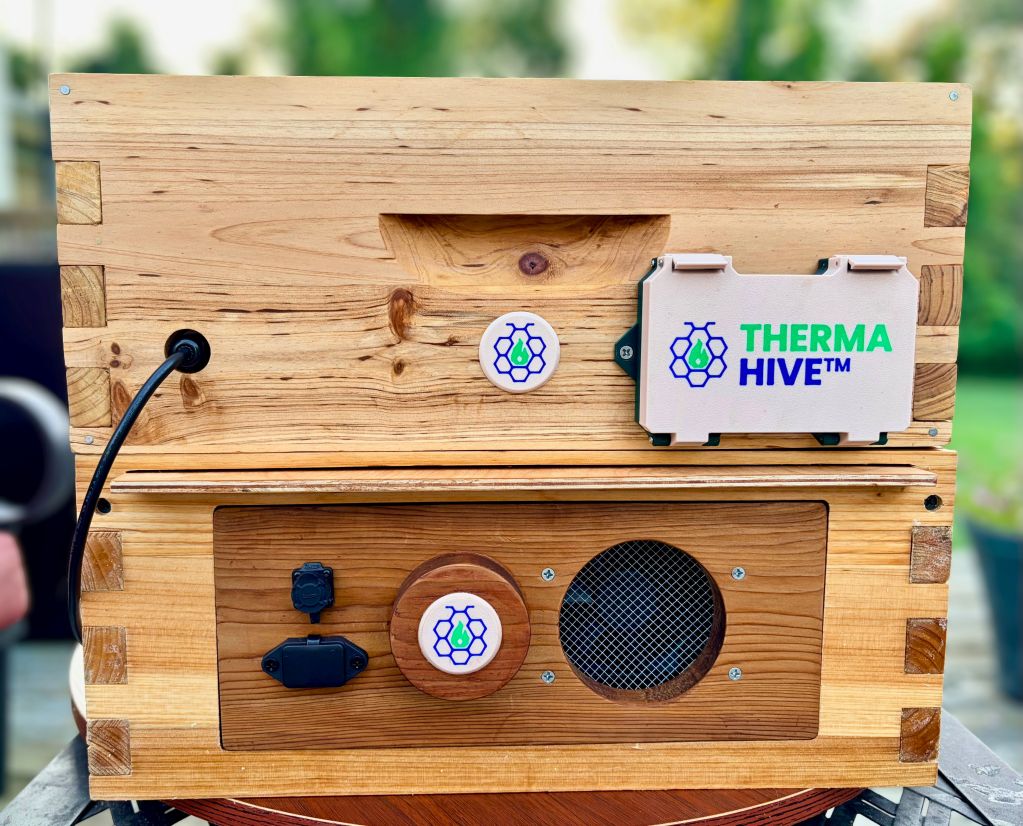

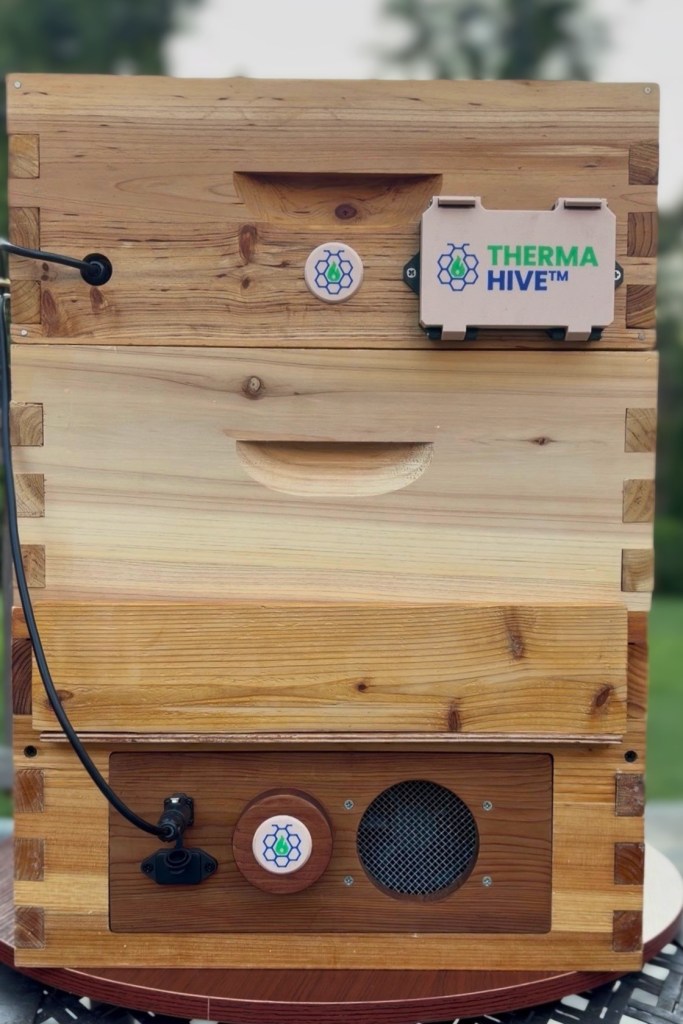

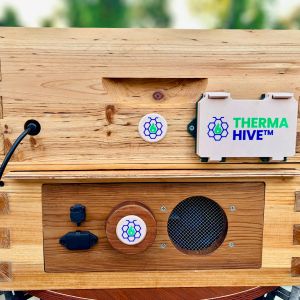

V2 Complete
A product view of the isolated ThermaHive V2 bottom treatment box with its circular heater insert installed inside the frame.

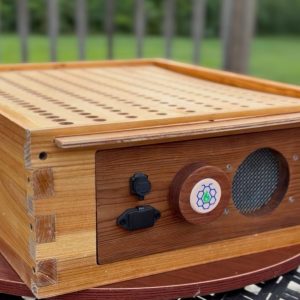

A product view of the ThermaHive V2 bottom treatment box with the custom diffuser plate insert installed.
An isolated product view of the circular ThermaHive V2 heater insert component and its electrical connection cable.
  • V2 heater insert
  • V2 Bottom Box with heater inserted
  • TopBox & HeaterInsert
  • V2 Complete
  • A product view of the isolated ThermaHive V2 bottom treatment box with its circular heater insert installed inside the frame.
  • A product view of the ThermaHive V2 bottom treatment box with the custom diffuser plate insert installed.
  • An isolated product view of the circular ThermaHive V2 heater insert component and its electrical connection cable.
V2 heater insertV2 Bottom Box with heater insertedTopBox & HeaterInsertV2 CompleteA product view of the isolated ThermaHive V2 bottom treatment box with its circular heater insert installed inside the frame.A product view of the ThermaHive V2 bottom treatment box with the custom diffuser plate insert installed.An isolated product view of the circular ThermaHive V2 heater insert component and its electrical connection cable.

ThermaHive V2 Heater Insert

$231.83
Pre-Order
Ready to ship by January 2027 or FREE pickup at NAHBE 2027
Available In:
00 Days
00 Hours
00 Minutes
00 Seconds

What’s in the Box

Heater Insert

✓
110V 500W PTC Ceramic Heater Insert
✓
Power Cord

Requires a Bottom Treatment Frame and ThermaHive Controller to operate. Compatible with all ThermaHive V2 Bottom Treatment Frames.

Number of Frames

ThermaHive V2

The Heater Insert is the working heart of the ThermaHive system. It snaps into any Bottom Treatment Frame via a magnetic locking connection, connects to the controller, and brings your hive up to treatment temperature with a self-regulating 500W PTC ceramic heating element. When the treatment is done, pull it out in seconds and move it to the next hive.

500W PTC Ceramic
Magnetic Lock
Self-Regulating
Tool-Free Install
Move Between Hives
500W
PTC Ceramic Output
110V AC
Standard Outlet
Magnetic
Locking Connection
Up to 125°F
Treatment Temperature

What’s in the Box

Heater Insert

✓
110V 500W PTC Ceramic Heater Insert
✓
Power Cord

Requires a Bottom Treatment Frame and ThermaHive Controller to operate. Compatible with all ThermaHive V2 Bottom Treatment Frames.

How It Works

Plug In. Treat. Move On.

The Heater Insert handles the hard part — converting electrical power into precise, controlled heat that fills your hive evenly during treatment. One insert can move between any number of hives equipped with a Bottom Treatment Frame.

🔥
PTC Ceramic Heating — Self-Regulating by Design
The 500W PTC (Positive Temperature Coefficient) ceramic heating element is inherently self-regulating — its electrical resistance increases as it heats up, which naturally limits power draw and prevents thermal runaway without any additional circuitry. The ThermaHive Controller still governs the treatment profile, but the PTC element adds a built-in layer of safety at the heat source itself.
🔒

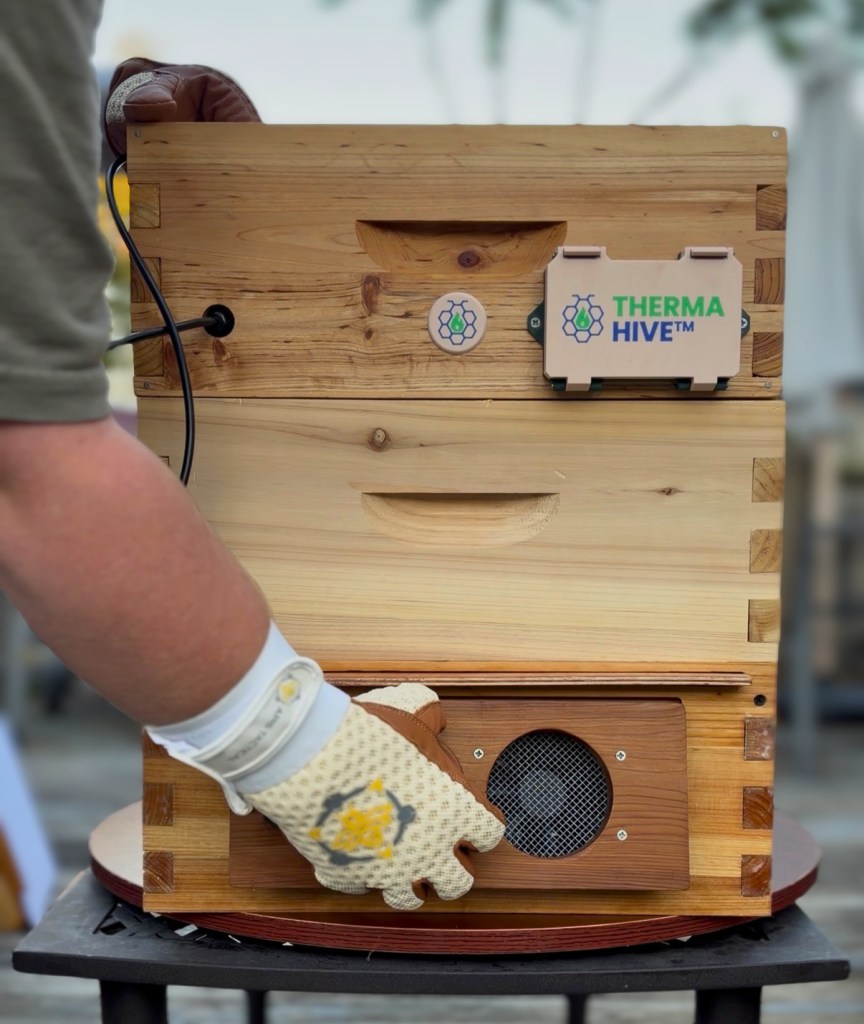

Snaps In. Pulls Out. No Tools.
The Heater Insert connects to the Bottom Treatment Frame via a magnetic locking system — no screws, no clamps, no straps. It seats securely during treatment and releases cleanly when you’re done. Moving it to a different hive takes seconds. If you have multiple hives equipped with Bottom Treatment Frames, a single Heater Insert can rotate through all of them.
⊕
Add a Second Heater to Treat Simultaneously
One Heater Insert with one controller treats one hive at a time. Add a second Heater Insert — along with a second controller (Top Box) — and you can run two full treatments simultaneously on separate hives. This is the most efficient configuration for larger apiaries where mite pressure means you need multiple hives treated at once, not one after another.
🌡️
Precision-Controlled by the ThermaHive Controller

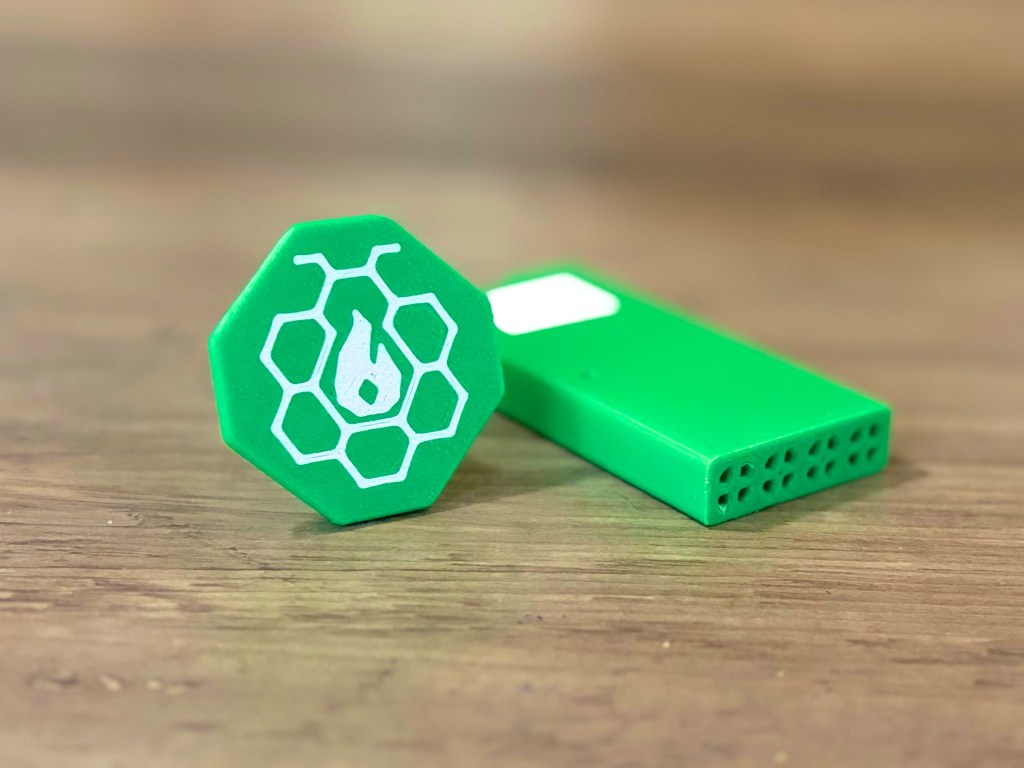

The Heater Insert doesn’t operate on its own — it works in tandem with the ThermaHive Controller (Top Box), which monitors hive temperature via the wireless sensor and switches heat output through a KY019 relay, backed by a KSD301 thermal switch and an SF96E thermal fuse. The controller maintains your target treatment temperature throughout the session and logs every data point to the SD card. The Heater Insert is the muscle; the controller is the brain.

Weight 3 lbs
Dimensions 11.5 × 4 × 4.75 in
Number of Frames

10-Frame, 8-Frame
Heater Type

110V 500W PTC ceramic element (self-regulating)
Power Input

110V AC standard outlet (Alternative options not yet available)
Temperature Range

Up to 125°F (52°C) adjustable
Safety

Dual Relay Protection
